Claydon launch exciting new mounted drills in 2022

Claydon will launch a new range of mounted drills at Lamma ‘22. Building on the company’s 20 years’ experience of this technology, the nine Claydon Evolution models take direct strip seeding to the next level.

Lamma launch for exciting new mounted drills

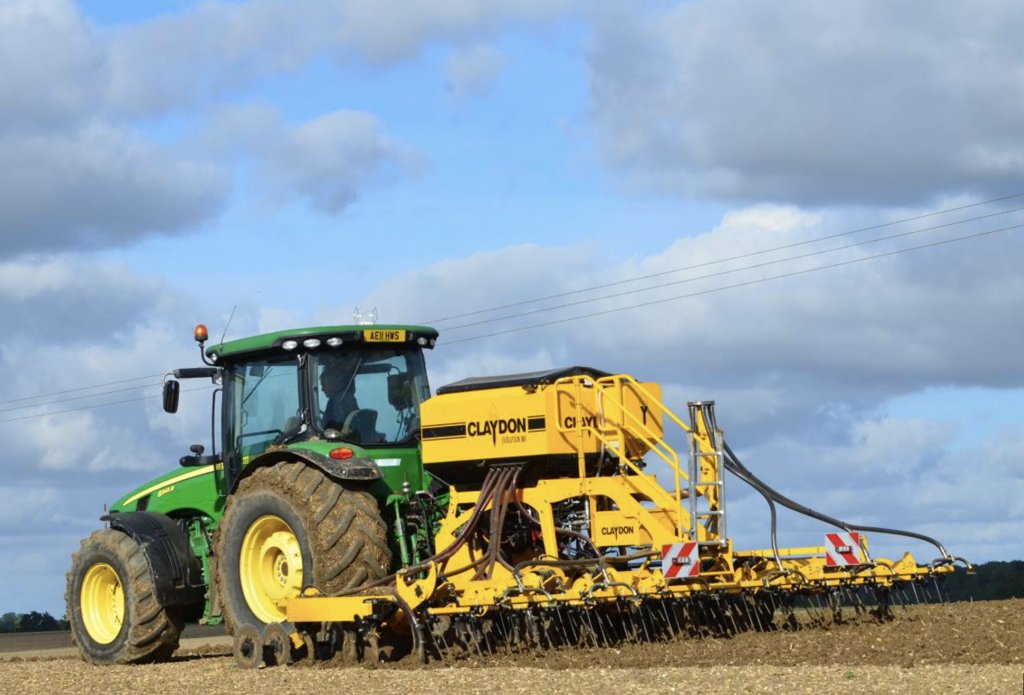

With working widths of 3, 4, 4.5, 4.8, 5 and 6m, they incorporate 9, 13, 15 or 19 tines and most feature a 1,910-litre hopper, with the 3m 3MF and 4m 4MRF having a 2700-litre tank split 50:50 between seed and fertiliser. Typical daily outputs range from 20ha for the 3m Evolution, which requires a tractor of at least 150hp, to 40ha for the 6m version which needs a minimum of 300hp (6m version is pictured).

Claydon Evolution drills combine new levels of operational functionality with the tried and tested features which have made Claydon Opti-Till the crop establishment system of choice for growers who want to reduce costs, increase productivity and improve soil health. All models feature as standard a hydraulic fan, Artemis metering control, tramlining facility, front tine/7in A-share configuration, together with a double rear toolbar and road lights.

The Evolution line-up, which includes a 5m unit and 4m rigid grain/fertiliser model, incorporates a range of new features to improve operational functionality. Seed depth adjustment is now controlled hydraulically, improved access to the metering unit allows easier calibration, while front-mounted discs, which are operated hydraulically from the tractor seat, can be specified for seeding into high residue situations.

The 1,910-litre hopper on seed-only Evolution models holds 160-litres more than current Claydon Hybrid mounted models, while Evolution 3MF and 4m 4MRF versions hold an additional 600 litres.

Other features include quick-fit knock-on/knock-off coulter options for the standard leading tine and A-Share to low disturbance twin disc and tine options. Multiple seed tool options allow a wide range of crops to be drilled across different soil types and situations, while the quick-change facility allows fast, easy modification when required. A large, easily accessible toolbox incorporated into the step frame is also standard equipment.

Options include GPS variable seed rate capability, pre-emergence marker arms, front disc toolbar stone protection, micro fertiliser applicator, low-disturbance twin tine kit, slug pelleter, blockage sensors and a light and vision kit.

The design of the Claydon Evolution keeps running costs to a minimum, enabling fuel-efficient farming and minimal soil disturbance in all sowing scenarios. The drill operates accurately, reliably, and inexpensively across a wide range of situations, the simple, robust design and great flexibility allowing it to be used in the autumn or spring to establish any crop that can be air sown. The split hopper design of the 3m 3MF and 4m 4MRF models provides additional versatility, allowing fertiliser to be applied at the time of drilling.

The new Evolution range will be available for delivery from autumn 2022 and will replace the current Hybrid range of mounted drills. It will be priced between the Hybrid mounted range it supersedes and the Hybrid Trailed drill range.

Visit the website for more information.

Hall 6 Stand 6.600
